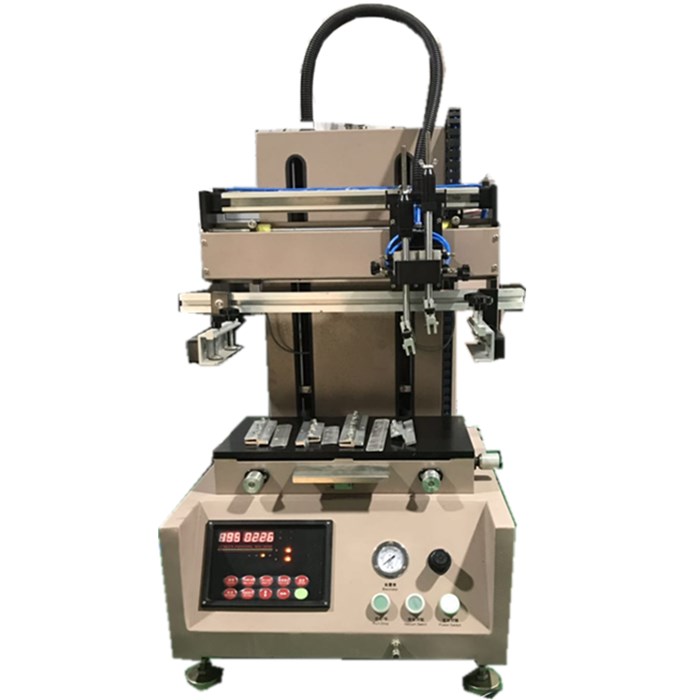

RH-2030 Planar Inhalation Screen Printing Machine
Easy ways to get the answers you need.
Product introduction:
1. Microcomputer controls the action of each function. It is simple and convenient to operate. It has five-bit automatic counter.
All pneumatic components adopt imported brands to ensure the quality of the machine.
3. Around the scraper is driven by a rod cylinder, and its position is smooth and smooth.
4 Workbench can be fine-tuned before and after, left and right, plane pendulum angle, mesh frame can be fine-tuned before and after, adjustment is convenient and fast.
Automatic balancing scraper to ensure oil pressure balance, scraper pressure can be adjusted freely, printing stroke and speed can be adjusted to meet different printing requirements, the machine mechanical error is less than 5 silks.
6 Workbench: T groove platform/suction platform is optional.
Technical parameters:
Model 2030xf
Maximum mesh area (mm) 250*450
Workbench area (mm) 250*400
Maximum printing area (mm) 200*280
Maximum workpiece printing height (mm) 50mm
Printing speed 1500 times per hour
Power supply 110/220V 50/60HZ 40W
